Facilities

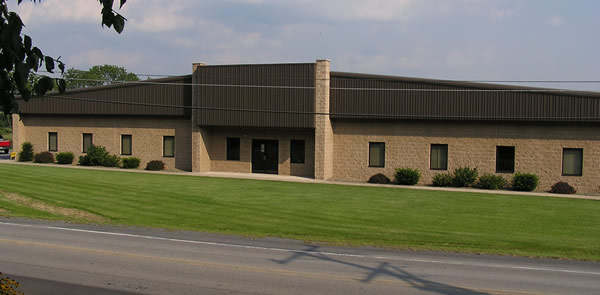

Facility:
Shop Area:
16,930 square feet
Storage Area:
1,430 square feet
Office Area:
715 square feet
Entire Plant - Temperature Controlled



CNC Horizontal Machining Center

(2) Kitamura Mycenter H400 Horizontal

24"x 20" x 20" XYZ Travel, 16" Pallets, 10,000 RPM Spindle,
100 Tool ATC, Full 4th Axis

CNC Vertical Machining Centers
(1) Kitamura Jigcenter-7

28" x 44" x 23" XYZ Travel, 6,000 RPM Spindle, 20 Tool ATC,
Full 4th Axis
(1) Kitamura Mycenter-3X

18" x 30" x 18" XYZ Travel, 10,000 RPM Spindle, 20 Tool ATC
(1) Kitamura Mycenter-3X

18" x 30" x 18" XYZ Travel, Automatic Pallet Changer, 10,000 RPM Spindle,
24 Tool ATC
(4) Kitamura Mycenter-1

14" x 20" x 16" XYZ Travel, 13,000 RPM Spindle, 20 Tool ATC
(1) Mazak V515

21" x 41" x 24" XYZ Travel, Automatic Pallet Changer, 6,000 RPM Spindle,
60 Tool ATC, Pallet Size: 22" x 51"
(1) Takisawa MAC-V5
19" x 36" x 24" XYZ Travel, 4,000 RPM Spindle, 20 Tool ATC

CNC Lathes
(1) Mori-Seiki SL3

Control: Fanuc 10TEF, 4,000 RPM Spindle, 13" Turning Capacity,
2.8" Spindle Bore, 12 Station Turret, 3 Jaw Chuck, 3K Collet Chuck
(1) Mori-Seiki SL-25M

Control: Fanuc Moric-T6F, Live Tooling, 4,000 RPM Spindle, 13" Turning Capacity,
2.80" Spindle Bore, 12 Station Turret, Bar Puller, Parts Catcher, Auto Tool Preset,
3 Jaw Chuck, 3J Collet Chuck

CNC Programming System
Mastercam Drafting and Design, Electronic Data Transfer (IGES & DXF), Five Networked Computers

Manual Milling Machines
(2) Bridgeport Vertical Series 1

9" x 48" Table, Sony Digital Readout
(1) DeHoff Horizontal Twin Head Mill

Engine Lathe
(1) Clausing Colchester with Sony Digitals - 15" Swing x 60" Bed

Grinders
Okamoto Surface Grinder
12" x 24"
Cincinnati Tool & Cutter Grinder
10" x 44"
Belt Sanders


Saws
DoAll Vertical Bandsaw - Hydraulic Feed
20" Throat
DoAll Vertical Bandsaw - Hydraulic Feed
36" Throat
DoAll Horizontal Bandsaw - Auto Index
12" x 16"
DoAll Horizontal Band-C305NC (NC Automatic)
12" x 16"

Major Inspection Equipment
Brown & Sharpe Microval Coordinate Measuring Machine
Optical Gaging Products Optical Comparator
14"
Trimos Electronic Digital Height Gage
24"
Trimos Digital Height Gage
24"
Rockwell Hardness Tester

Finishing Equipment
(2) 10 cubic ft. Vibratory Bowls
(2) 3 cubic ft. Vibratory Bowls
(1) Blast-It-All Blasting Cabinet 36" x 48"
Electric Heat Treat Furnaces

Wire EDM
(1) Charmilles Robofil 240 (submersible)

13-3/4" x 8-5/8" x 8-5/8" XYZ Travel
